Hongnuo (shenyang) General Machinery Co., Ltd. yog ib qho ntawm feem txhim khu kev qha manufacturers thiab lwm tus neeg ntawm baffle flow hloov nyob rau hauv Suav teb. Txais tos kom yuav zoo baffle ntws hloov ntawm tus nqi sib tw los ntawm peb lub hoobkas. Peb kuj txais customized txiav txim.

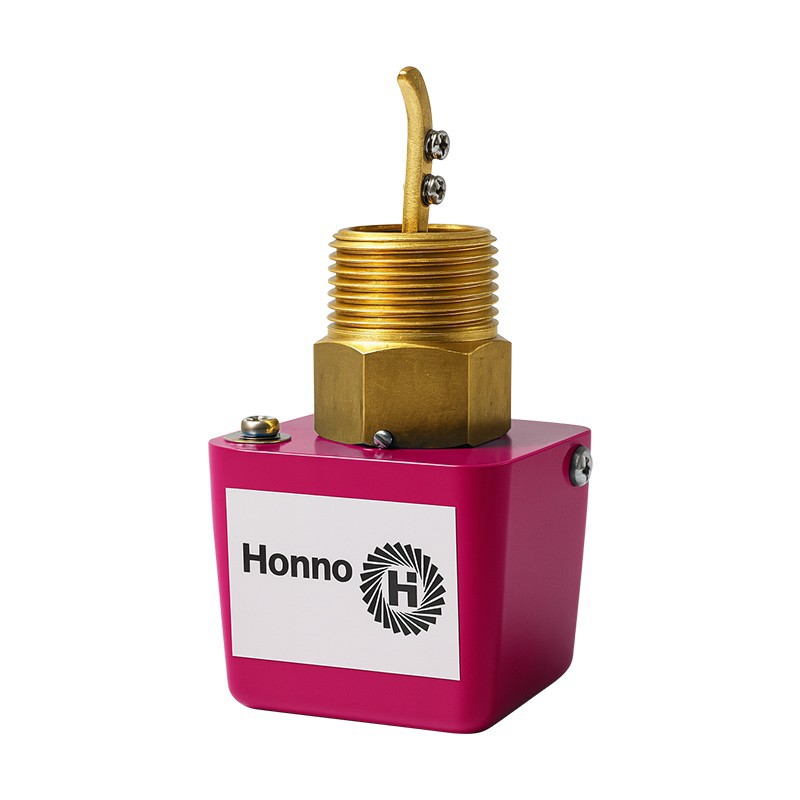

HNF10-E Baffle Flow Switch yog lub tshuab nqus dej twj tso kua mis zoo rau kev siv kua thiab roj. Nws nta lub caij nplooj ntoos hlav-txhawb nqa baffle tsim uas ua rau lub microswitch thaum ncav cuag tus nqi ntws ua ntej, ua kom ntseeg tau thiab rov ua haujlwm. Nrog kev sib cais ua tiav ntawm cov khoom siv tshuab thiab hluav taws xob, nws muaj kev ruaj ntseg thiab ruaj khov.
Qhov kev hloov no muab SPDT tso zis (feem ntau qhib + ib txwm kaw, 250VAC, 3A), tsis tshua muaj siab poob (kwv yees . 0.08 bar ntawm max flow), thiab dav adjustable flow range. Nws los ntawm tus qauv nrog tsib daim hlau baffle, tso cai rau hloov pauv ntawm - qhov chaw teeb tsa kom haum rau cov yeeb nkab sib txawv (ntawm 1 "mus rau 6"). Lub tsev yog ua los ntawm ABS nrog stainless hlau thiab tooj dag sab hauv, muab kev tiv thaiv corrosion thiab kev ntsuas siab txog li 16 bar.
Haum rau kev lag luam automation, machinery, compressed cua tshuab, tub yees, thiab HVAC, HNF10-E yog ib qho yooj yim rau nruab thiab kho. Nws ua haujlwm nyob rau hauv qhov kub ntawm -25℃mus rau 80℃ambient thiab tuav xov xwm kub txog li 90 degree. Nrog lub davhlau ya nyob twg thaiv, kev tiv thaiv IP33, thiab kev ua haujlwm zoo ib yam txawm tias nyob hauv cov xov xwm qias neeg, nws yog ib qho kev daws teeb meem uas muaj txiaj ntsig zoo rau kev saib xyuas cov kav dej loj dua.
Cim npe nrov: baffle flow switch, Tuam Tshoj baffle flow switch manufacturers, lwm tus neeg, Hoobkas
|
HNF10-E Baffle Hom Flow Hloov |
|
|
Tshwj xeeb Parameters |
Tus nqi / Nqe lus piav qhia |
|
Kev Ntsuas Txoj Cai |
Nws ua haujlwm raws li cov txheej txheem kho tshuab. Cov dej ntws ua raws li lub baffle txhawb nqa los ntawm lub caij nplooj ntoos hlav. Thaum tus nqi ntws mus txog tus nqi preset, lub zog ntawm lub baffle mechanically ua rau lub micro hloov, yog li tsim lub teeb liab hloov. |
|
Nominal Diameter Range |
Xov 1 "-6", lwm qhov ntau thiab tsawg customizable |
|
Wetted Parts Khoom |
Stainless hlau |
|
Txoj kev sib txuas |
Threaded kev twb kev txuas |
|
Kev ntsuas qhov siab tshaj plaws |
± 2.5% ntawm tag nrho Scale |
|
Kev ntsuas Range |
20-1800L / min |
|
Cov txheej txheem siab tshaj plaws |
16 bar |
|
Nruab nrab kub ntau yam |
Qhov siab tshaj 90 degree |
|
Ambient Temperature Range |
-25...80 degree |
|
Transmitter Tsev Khoom |
Tsis txwv |
|
Zaub / Kev Ua Haujlwm |
Tsis muaj zaub |
|
Cov tswv yim |
|
|
Cov zis |
Nquag Qhib + Nquag Kaw (250VAC, 3A) |
|
Fais fab mov |
24VDC / 230V AC |
|
Daim ntawv pov thawj |
|
|
Kev Nyab Xeeb Kev Nyab Xeeb |
Kev nyab xeeb ua haujlwm ua raws li IEC 61508 tus qauv, tso cai rau nws siv hauv kev nyab xeeb daim ntawv thov raws li tau teev tseg los ntawm IEC 61511 tus qauv. |
